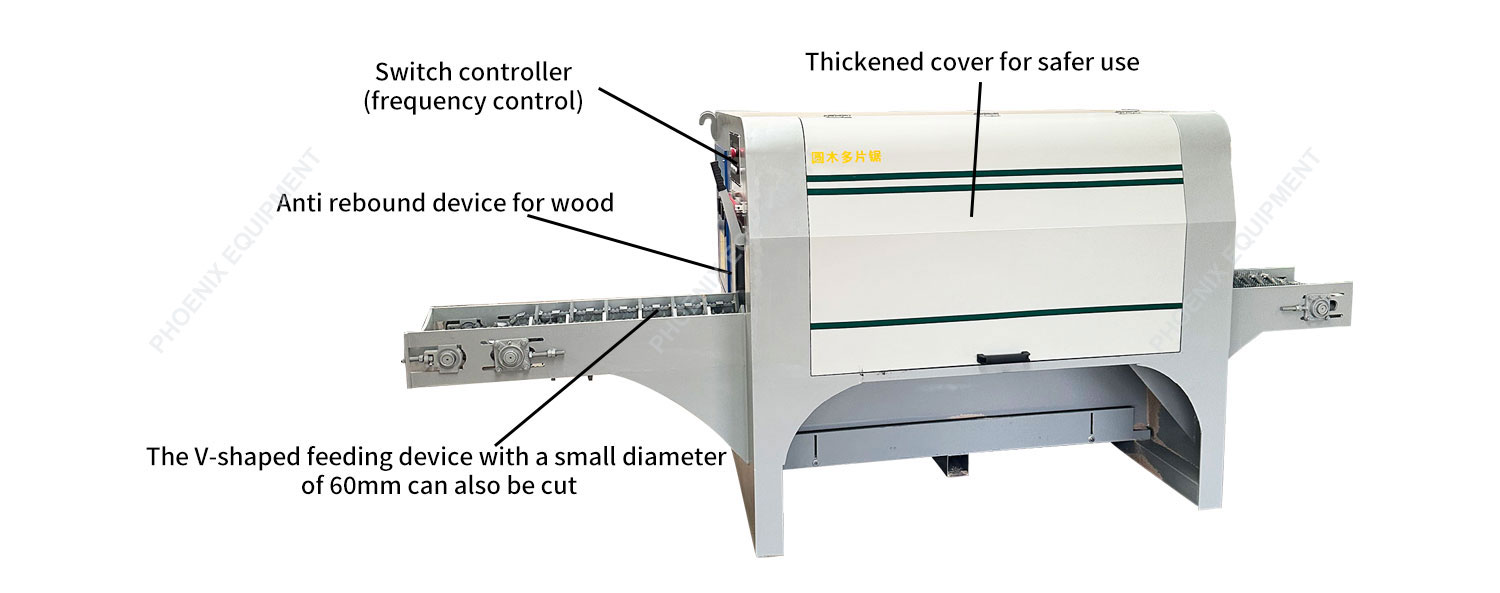

PYM200 Small Round Wood Multi Blade Sawing Woodworking Machinery Design for Board Logs

Name: PYM200 Small Round Wood Multi Blade Sawing Woodworking Machinery Design for Board Logs
Brand: Phoenix Equipment
Price: 5 USD

China PYM200 Small Round Wood Multi Blade Sawing Woodworking Machinery Design for Board Logs factory

Condition : New

Type : Rip Saw

Use : Woodworking

Style : Horizontal

Place of Origin : Shandong, China

Brand Name : Phoenix Equipment

Dimension(L*W*H) : 3420*1550*1530mm

Warranty : 1 Year

Application : Woodworking Factory

Weight (KG) : 2100 KG

Power (kW) : 22KW*2

Key Selling Points : Easy to Operate

Max.Working Width(mm) : 200mm

Max.Working Height(mm) : 200mm

Rip Saw Type : Multi-blade

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Printing Shops, Construction works , Other, Woodworking Factory

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

Name : multi blade rip saw machine

Product name : Plank Cutting Multiple Blade Rip Saw

Usage : Log cutting

Function : Round wood slicing

Sawing Log Diameter : 60mm--200mm

Sawing Log Length : 650---4000mm

Spindle speed : 3300r/min

Feed speed( Frequency Control ) : 0-10m/min

Saw blade diameter : 305mm

Spindle diameter : 50mm

Price : $5,600.00/sets 1-9 sets

MOQ : 1 set

Contact Now

PYM200 Small Round Wood Multi Blade Sawing Woodworking Machinery Design for Board Logs

Products Description

Specification

Model	PYM200	PYM250	PYM-300	PYM-350	PYM-400
Sawing Log Diameter	60mm--200mm	80---250mm	100---300mm	100---350mm	120---400mm
Sawing Log Length	650---4000mm	700---4000mm	750--4000mm	800--4000mm	900-4000mm
Spindle speed	3300r/min	3300r/min	2500r/min	2300r/min	2300r/min
Main Motor power	22KW*2	22KW+30KW	30KW+37KW	37KW*2	45KW*2
Feeding Motor	1.5KW*2	1.5KW*2	1.5KW*2	1.5KW*2	1.5KW*2
Feed speed ( Frequency Control )	0-10m/min	0-10m/min	0-10m/min	0-10m/min	0-10m/min
Saw blade diameter	305mm	355mm	405mm	455mm	500mm
Spindle diameter	50mm	50mm	70mm	70mm	70mm
Cooling mode	Spindle water cooling	Spindle water cooling	Spindle water cooling	Spindle water cooling	Spindle water cooling
Overall dimension	342015501530mm	350015501530mm	380016801600mm	386016801600mm	390016801600mm
Machine weight	2100kg	2500kg	2800kg	3200kg	3400kg
Remarks optional	Accept customization

Packing Delivery

1. Outside package: Standard marine export plywood cases.

2. Inner package: Stretch film and plastic film for humidity.

We can package according to your requests

Product Name	woodworking round log cutting saw multi blade rip saw machine multiple rip saw machine
Brand	PHOENIX EQUIPMENT
Customized	color, logo, voltage
MOQ	1 set
Package	plywood wooden box
Payment terms	Alibaba Trade Assurance, T/T, Alipay
Usage	cut wood logs into boards
