70mm Cutterblock Diameter Woodworking Planer and Pressure Planer with Integrated Pressure

Name: 70mm Cutterblock Diameter Woodworking Planer and Pressure Planer with Integrated Pressure
Brand: PHOENIX EQUIPMENT
Price: 2 USD

China 70mm Cutterblock Diameter Woodworking Planer and Pressure Planer with Integrated Pressure factory

Place of Origin : Shandong, China

Brand Name : PHOENIX EQUIPMENT

Condition : New

Machine Type : Multifunctional combination machine

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Gearbox, Motor, Pressure vessel, Gear, Pump

Warranty : 1 Year

Weight (KG) : 385 KG

Power (kW) : 4

Key Selling Points : Automatic

Showroom Location : United Kingdom, United States, Italy, France, Germany

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Construction works , Other, Advertising Company

style : 400C

Name : Multi functional electric combined combination machine

Brand : PHOENIX EQUIPMENT

working form : fully automatic

Working tables : 400x1800mm

Cutterblock diameter : 70mm

3-phase motor power : 4,0 - 3,0kw

Weight : 385kg

Wescott(Chuck) : 16mm

Cutterblock rotation speed : 5700r.p.m

Packaging Details : 1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Port
Qingdao port

Port : We can package according to your requests Port Qingdao port

Supply Ability : 100 Acre/Acres per Month

Price : $2,800.00/acres 1-4 acres

MOQ : 1 set

Contact Now

70mm Cutterblock Diameter Woodworking Planer and Pressure Planer with Integrated Pressure

Products Description

Specification

Planer	Unit	400C
Working tables	mm	400x1800
Cutterblock diameter	mm	70
Cutterblock rotation speed	r.p.m	5700
N. of knives	n°	3
knives dimensions	mm	400x20x3
Max table adjustement	mm	4
Working table	mm	400x760
Feed speed	m/1'	7
Max. working height	mm	220
Min. working height	mm	4
Cutterblock rotation speed	r.p.m	5700
Max. cutting depth	mm	4
Working table	mm	250x500
Longitudinal stroke	mm	205
Trasversal stroke	mm	95
Vertical stroke	mm	90
Churck	mm	16
Churck rotation speed	r.p.m	5700
Service wrenches	*	*
Mortiser chuck	*	*
Guards on mortiseur chuck	*	*
3 pcs. planing knives	*	*
Planer guide	*	*
Bridge sefety hood on planer	*	*
3-phase motor power	HP - KW	4,0 - 3,0
Weight	Kg	385
Single-phase motor	HP - KW	5,5 - 4,0
Increasing 3-phase motor	HP - KW	4,0 - 3,0
Wescott(Chuck)	mm	16

Packing Delivery

1. Outside package: Standard marine export plywood cases.

2. Inner package: Stretch film and plastic film for humidity.

We can package according to your requests

Product Name	Woodworking Planer Machine Prices Italian Technology Combination Woodworking Machine
Brand	PHOENIX EQUIPMENT
Customized	color, logo, voltage
MOQ	1 set
Package	plywood wooden box
Payment terms	Alibaba Trade Assurance, T/T, Alipay
Usage	The machine is for surface polishing and fixed thick sanding ,suitable for timber, wood panels, block board, cement fiberboard,insulation panels, ceramic fiber, glass fiber, wall panels, wood products and other artifacts.

Company Profile

Recommend Products

FAQ

1. who are we?
We are based in Shandong, China, start from 2016,sell to North America(26.00%),Mid East(22.00%),Southeast
Asia(13.00%),Africa(11.00%),South Asia(11.00%),Western Europe(9.00%),Eastern Europe(8.00%). There are total about 51-100 people in
our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
panel saw,edge banding machine,sanding machine,cnc router,hot press

4. why should you buy from us not from other suppliers?
Phoenix Machinery, has been dealing in woodworking machinery for more than 10 years.Our products are mainly Edge Banding Machine,Precise panel saw, Multiple Drilling Machine, Cold Press etc.,

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Portuguese,Arabic,French,Russian

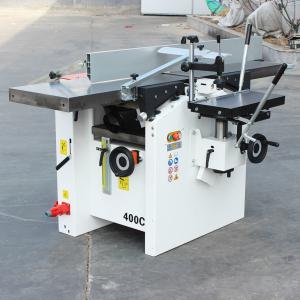

70mm Cutterblock Diameter Woodworking Planer and Pressure Planer with Integrated Pressure Images
