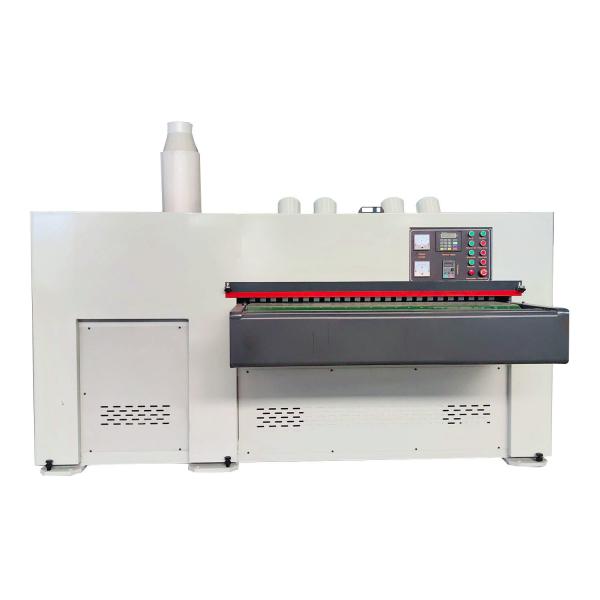

1300mm Maximum Cutting Width Planer for Industrial Woodworking of Solid Wood and MDF

Name: 1300mm Maximum Cutting Width Planer for Industrial Woodworking of Solid Wood and MDF
Brand: PHOENIX EQUIPMENT
Price: 15 USD

China 1300mm Maximum Cutting Width Planer for Industrial Woodworking of Solid Wood and MDF factory

Condition : New

Max.Planing Depth(mm) : 100 mm

Max.Planing Width(mm) : 1300

Type of Cutter Head : Straight

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2023

Warranty of core components : 1 Year

Core Components : Motor

Type : wall panel planer

Place of Origin : Shandong, China

Sliding Table Equipped : NO

Brand Name : PHOENIX EQUIPMENT

Dimension(L*W*H) : 2750*2360*1500mm

Warranty : 1 Year

Weight (KG) : 2800 KG

Power (kW) : 22

Key Selling Points : Easy to Operate

Applicable Industries : Building Material Shops, Manufacturing Plant, Food & Beverage Factory

Name : wall panel machine

Product Name : wood shaping planer

Application : Production of concave convex wall panels

Maximum cutting width : 1300mm

Maximum workpiece thickness : 100mm

Minimum workpiece thickness : 3mm

Minimum workpiece length : 300mm

Feeding speed : 0-30m/min

Planer shaft diameter : 120mm

Vacuum pump size : 1080*920*930mm

Price : $15,300.00/sets 1-2 sets

MOQ : 1 set

Contact Now

1300mm Maximum Cutting Width Planer for Industrial Woodworking of Solid Wood and MDF

Products Description

Specification

Model	MB1300S
Maximum cutting width	1300mm
Maximum workpiece thickness	100mm
Minimum workpiece thickness	3mm
Minimum workpiece length	300mm
Feeding speed	0-30m/min
Main motor power	22kw
Feeding motor power	3kw
Power of lifting motor power	0.55kw
Vacuum pump motor power	11kw
Planer shaft diameter	120mm
Equipment size	275023601500mm
Vacuum pump size	1080920930mm
Weight	2800kg

Packing Delivery

1. Outside package: Standard marine export plywood cases.

2. Inner package: Stretch film and plastic film for humidity.

We can package according to your requests

Product Name	Relief Plate Planer
Brand	PHOENIX EQUIPMENT
Customized	color, logo, voltage
MOQ	1 set
Package	plywood wooden box
Payment terms	Alibaba Trade Assurance, T/T, Alipay
Usage	The equipment make solid wood boards and MDF boards to be planed into concave and convex surfaces
